Products/Valves/Other Type Valves
Valves Range

Other Type Valves

Lined, jacketed, 3-way, strainers and sight glasses for specialty applications.

Request Product Line Quote
Lined Valves (Ball, Butterfly & Plug)
Jacketed Floating Ball Valve
3 Way Floating Ball Valve
Y-Type Strainer
Full View Sight Glass

Lined Valves (Ball, Butterfly & Plug)

Engineering Overview

Specialty valve range including PFA/FEP lined ball & butterfly valves, jacketed ball valves, 3-way valves, disc check valves, full view sight glasses, double window sight glasses, Y-type and basket type strainers.

Available Model Range (5 Variants)

All variant details expanded below — no clicking required

Lined Valves (Ball, Butterfly & Plug) - View 1Click to zoom & inspect
Variant 1

Lined Valves (Ball, Butterfly & Plug)

Specifications

TypeBall / Butterfly / Plug Valves
Size Range15 mm to 300 mm

Materials

Lined MOCPFA, Antistatic PFA, TFM & FEP
Body MOCWCB, CF8 & CF8M
Ball/Disc/Plug MOCCF8 & CF8M
Request Quote for Lined Valves (Ball, Butterfly & Plug)
Jacketed Floating Ball Valve - View 1Click to zoom & inspect
Variant 2

Jacketed Floating Ball Valve

Features

Fire safe (API-607)One Piece BodyDouble Sealing

Specifications

Size15 mm to 250 mm NB
Pressure RatingASME #150 & #300
Temp. Range-35°C to 280°C
Design StandardAPI 6D Rev 23; ISO 17292 Rev 2004
Request Quote for Jacketed Floating Ball Valve

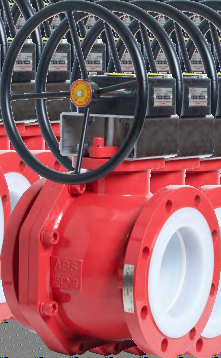

3 Way Floating Ball Valve - View 1Click to zoom & inspect
Variant 3

3 Way Floating Ball Valve

Specifications

TypeT Port & L Port
Size15 mm to 100 mm NB
Pressure RangeASME #150 & #300
Temp. Range-35°C to 280°C

Materials

Body MaterialsStainless Steel / Carbon Steel / Alloys
Request Quote for 3 Way Floating Ball Valve
Y-Type Strainer - View 1Click to zoom & inspect
Variant 4

Y-Type Strainer

Specifications

Size Range25 NB to 150 NB
Pressure Rating150# & 300#
Body & CoverWCB, CF8, CF8M & CF3M
Mesh Number20, 30, 40*, 60, 80, 100

Materials

MeshSS304, SS316, SS316L & Duplex Steel
Request Quote for Y-Type Strainer
Full View Sight Glass - View 1Click to zoom & inspect
Variant 5

Full View Sight Glass

Specifications

TypeIC Casting, Base Stock, T Bush
Size Range15 NB to 150 NB
Design TempUp to 200°C
Design PressureUp to 10 Kg/cm²

Materials

W/P PartMS, SS304, SS316, SS316L and PP, PTFE Lined
Request Quote for Full View Sight Glass
