Instrumentation Range
Instrumentation
Precision pressure, temperature and level monitoring devices.
Pressure Gauge (SP & GP)
Engineering Overview
Complete range of precision monitoring instruments including pressure gauges (SP & GP), diaphragm gauges, temperature gauges, thermocouples, RTD sensors, pressure transmitters, level switches and gauge accessories from Badotherm India and global makes.
Available Model Range (6 Variants)
All variant details expanded below — no clicking required
Click to zoom & inspectVariant 1
Pressure Gauge (SP & GP)
Specifications
Nominal Size63, 100, 150, 200 and 250 mm
Std. Ranges-760 mmHg to 0, up to 700 kg/cm²
AccuracyClass ±1.0% of FS
ProtectionIP67
ComplianceEN837-1
Click to zoom & inspectVariant 2

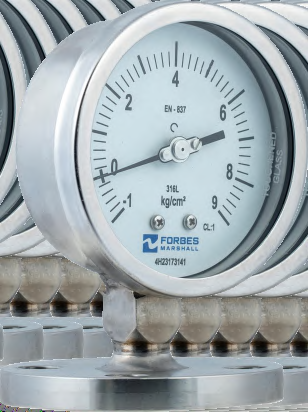

Chemical Seal Pressure Gauge
Specifications
ConnectionThreaded / Flanged / Triclover
ApplicationsCorrosive Media, High Temperature, Viscous Fluids, Pharma
TraceabilityNABL Traceability Certificate
Transmitting FluidSilicon DC200, DC704, Halocarbon, Flurolube
Materials
Diaphragm MOCSS316L, Monel 400, Inconel 825, Hastelloy-C276, Tantalum
Click to zoom & inspectVariant 3
RTD Sensor
Specifications
ElementsSimplex / Duplex
Element TypePT-100 (-200 to 450°C)
Accuracy ClassClass A / Class B (IEC-60751 / DIN 43760)
Wire Configuration2 / 3 / 4 Wire
TraceabilityNABL Traceability Certificate
Click to zoom & inspectVariant 4
Thermocouple
Specifications
ElementsSimplex / Duplex
Element TypeJ / K / N / R / S / B / T / E
Accuracy ClassClass I / Class II (IEC-584.2)
Wire Configuration2 Wire (Simplex) / 4 Wire (Duplex)
Sheath MaterialSS316 / Others on request
Click to zoom & inspectVariant 5
Bimetallic Temperature Gauge
Specifications
Nominal Size100 and 150 mm
Std. Ranges-40°C to 400°C
AccuracyTolerance Class 1 as per EN 13190
ComplianceEN13190
TraceabilityNABL Traceability Certificate
Click to zoom & inspectVariant 6

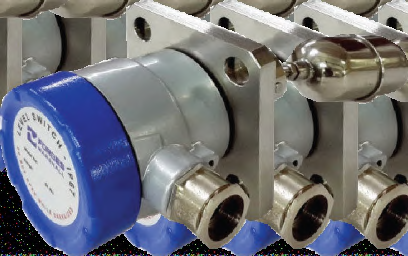

Side/Top Mounted Level Switch
Specifications
Float Dia42 mm, 52 mm, 75 mm SS316
EnclosureWeather Proof IP67 or LM24
Micro Switch Type1SPDT, 2SPDT
Maximum Pressure20 Bar
TraceabilityNABL Traceability Certificate
