Products/Valves/Butterfly Valves
Valves Range

Butterfly Valves

Concentric & High Performance designs for every pressure class.

Request Product Line Quote
Bonded Seat Butterfly Valve
Replaceable Seat Butterfly Valve
Triple Offset HP Butterfly Valve
Soft Seated Double Offset
Metal Seated Double Offset

Bonded Seat Butterfly Valve

IVGKL / IVGKB / IVTLB / IVDF

Engineering Overview

Akshardeep supplies a comprehensive range of butterfly valves from Intervalve — including concentric bonded seat, replaceable seat, PTFE seated, and high-performance double/triple offset designs for demanding applications across chemicals, pharma, power and oil & gas.

Available Model Range (5 Variants)

All variant details expanded below — no clicking required

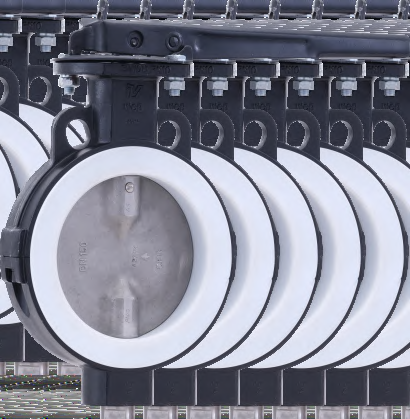

Bonded Seat Butterfly Valve - View 1Click to zoom & inspect
Variant 1

Bonded Seat Butterfly Valve

IVGKL / IVGKB / IVTLB / IVDF

Specifications

ModelIVGKL / IVGKB / IVTLB / IVDF
Size Range40 NB to 1200 NB
Pressure RatingPN10 & PN16
Seat DesignBonded
End ConnectionWafer / Lugged / Double Flanged
Request Quote for Bonded Seat Butterfly Valve

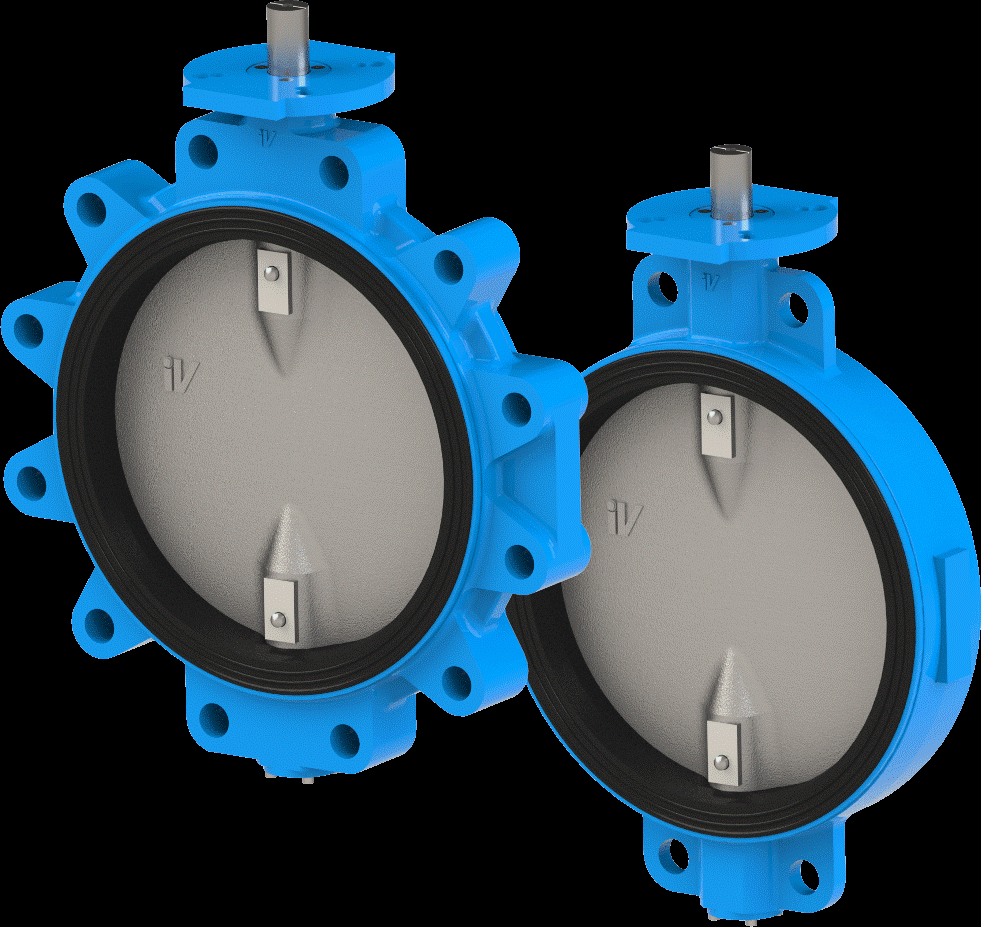

Replaceable Seat Butterfly Valve - View 1Click to zoom & inspect
Variant 2

Replaceable Seat Butterfly Valve

IVGKR / IVTL

Specifications

ModelIVGKR / IVTL
Size Range50 NB to 600 NB
Pressure RatingUp to PN10
Seat DesignReplaceable
End ConnectionWafer / Lugged
Request Quote for Replaceable Seat Butterfly Valve

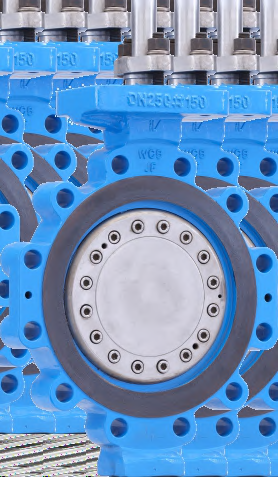

Triple Offset HP Butterfly Valve - View 1Click to zoom & inspect
Variant 3

Triple Offset HP Butterfly Valve

IVTEX

Specifications

ModelIVTEX
Size Range80 NB to 750 NB
Pressure RatingASME Class #150, #300, #600
Operating Temp-50°C to +540°C
Seat DesignLaminar Seal
Request Quote for Triple Offset HP Butterfly Valve

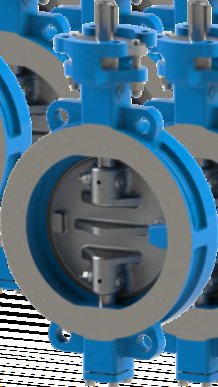

Soft Seated Double Offset - View 1Click to zoom & inspect
Variant 4

Soft Seated Double Offset

IVEX-T

Specifications

ModelIVEX-T
Size Range50 NB to 600 NB
Pressure RatingASME Class #150, #300
Operating Temp-50°C to +220°C
Seat DesignReplaceable PTFE / GFT
Request Quote for Soft Seated Double Offset

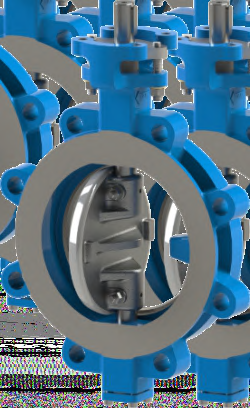

Metal Seated Double Offset - View 1Click to zoom & inspect
Variant 5

Metal Seated Double Offset

IVEX-M

Specifications

ModelIVEX-M
Size Range50 NB to 600 NB
Pressure RatingASME Class #150, #300
Operating Temp-50°C to +500°C
SeatInconel-625 / SS 316
Request Quote for Metal Seated Double Offset
