Valves Range
Ball Valves
Floating, Trunnion Mounted, Forged, Jacketed, 3-Way, Tank Bottom & PFA Lined designs.
Floating Ball Valve
2 Pcs Design (Soft & Metal Seated)
Engineering Overview
Comprehensive range of high-performance industrial ball valves covering Floating, Trunnion Mounted (2/3 Pcs), Forged Steel, Single Piece Jacketed, 3-Way (T & L Port), Flush/Tank Bottom, and PFA Lined configurations. Engineered to international standards (ISO 17292, API 6D, API 608, BS EN ISO 5208, BS EN 17292) from 15 NB to 700 NB and ASME Class #150 to #2500, with fire-safe, anti-static, full-bore, and cavity-free options for extreme industrial environments.
Available Model Range (7 Variants)
All variant details expanded below — no clicking required

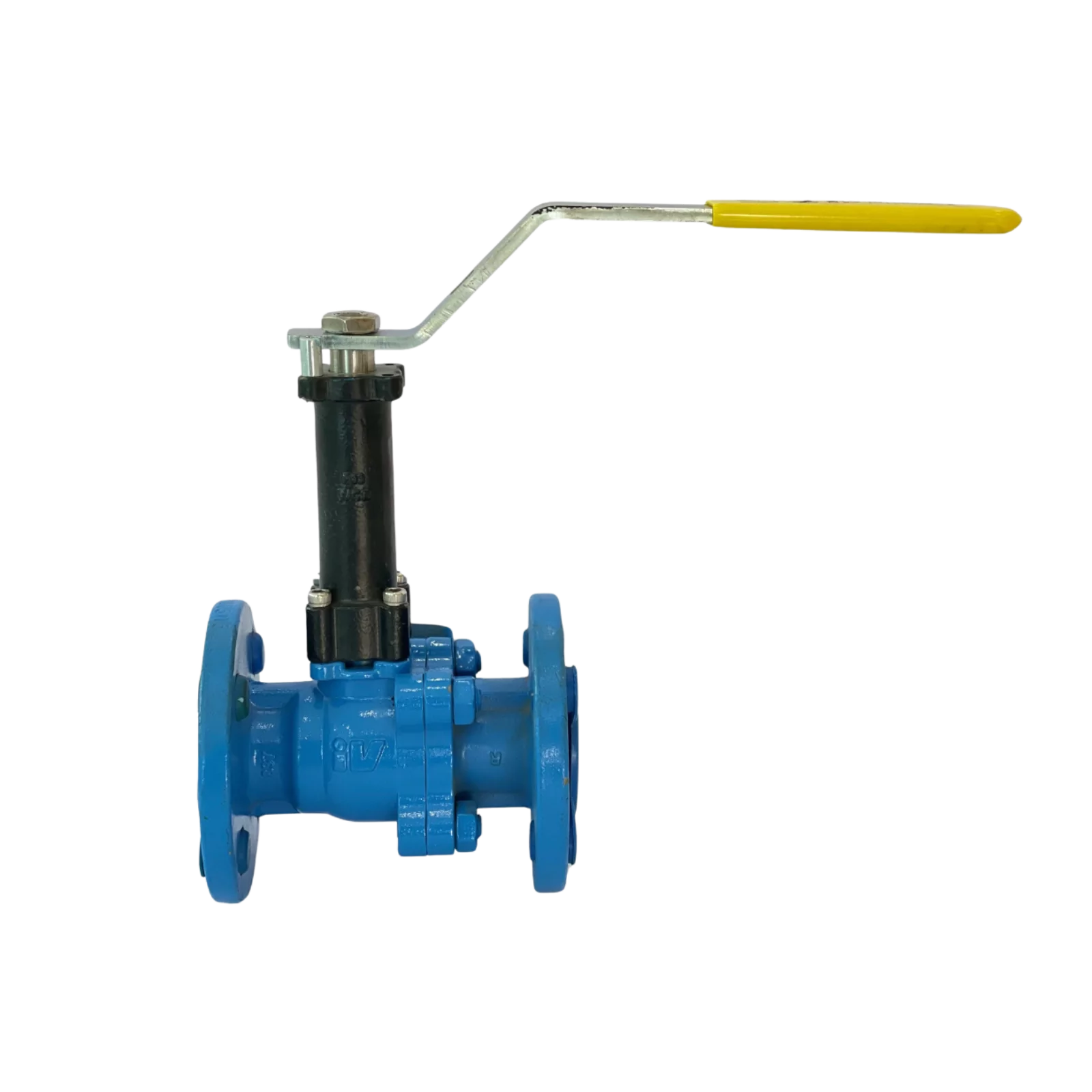

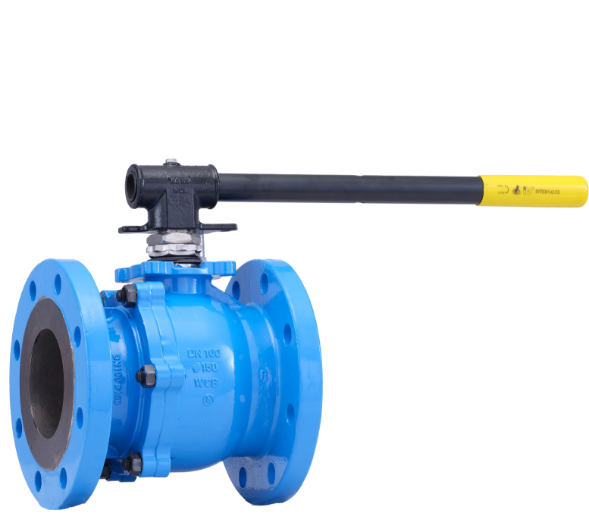

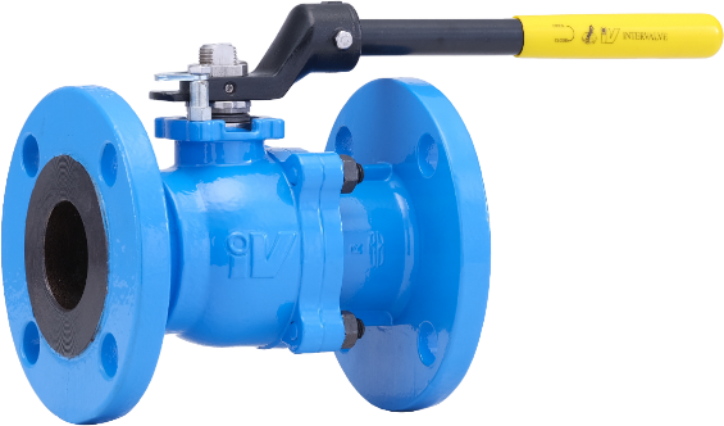

Click to zoom & inspectVariant 1
2 Pcs Design (Soft & Metal Seated)Floating Ball Valve
Features
Fire SafeFull BoreAnti-StaticLive Loading StemSolid BallTop ISO Pad
Specifications
Size Range15 NB to 250 NB
Pressure RatingASME Class #150 / #300 / #600 / #900 / #1500 / #2500
Design Temp.-29°C to +425°C (Depending upon MOC)
Design StandardISO 17292, API 608, API 6D
Testing Std.API 6D / BS EN ISO 5208 / API 598 / BS EN 12266-1
Face to FaceASME B16.10
End ConnectionFlanged ASME B16.5 (RF, RTJ, LFF)
Flow DirectionBi-Directional
OperatorHand Lever / Gear Box / Actuator
Materials
Body MOCCarbon Steel / Stainless Steel / Duplex / Alloys
Ball MOCStainless Steel / Duplex / Alloys
Seat OptionsPTFE / GFT / CFT / TFM / Devlon / PEEK / Metal (CRC / TCC / ST)
Stem MOCSS 304L / SS 316L / SS 304 / SS 316 / F51 / 17-4PH / Inconel 718

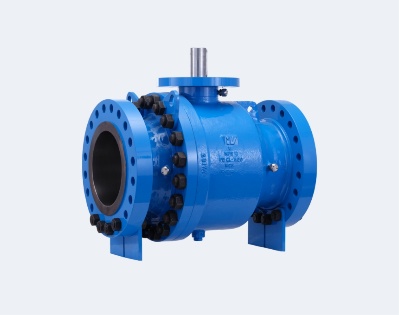

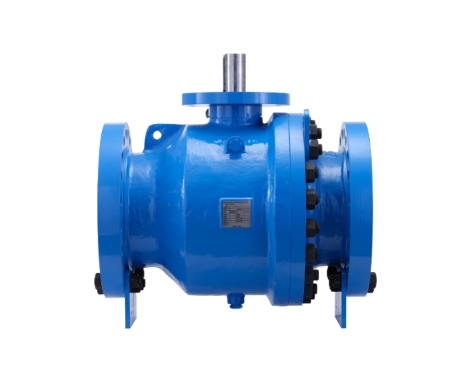

Click to zoom & inspectVariant 2

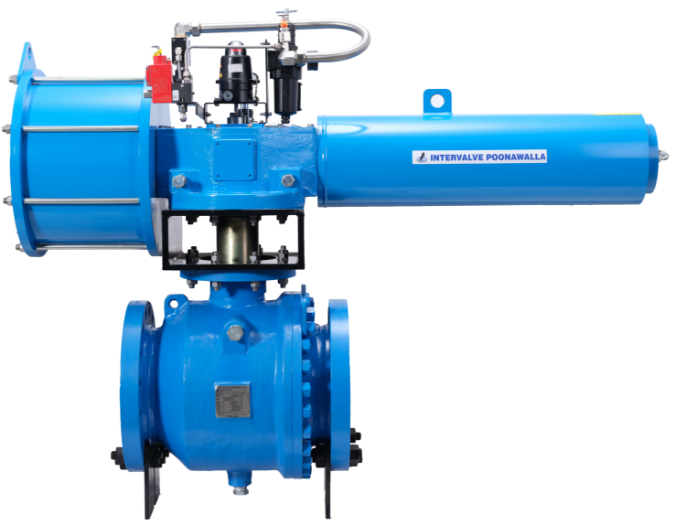

2/3 Pcs Design (Soft & Metal Seated)Trunnion Mounted Ball Valve
Features
Fire SafeFull BoreAnti-StaticLive Loading StemSolid BallTop ISO Pad
Specifications
Size Range50 NB to 700 NB
Pressure RatingASME Class #150 / #300 / #600 / #900 / #1500 / #2500
Design Temp.-29°C to +425°C (Depending upon MOC)
Design StandardAPI 6D / API 608 / ISO 17292
Testing Std.API 6D / API 598 / ISO 5208
Face to FaceASME B16.10
End ConnectionFlanged ASME B16.5
Flow DirectionBi-Directional
OperatorHand Lever / Gear Box / Actuator
Materials
Body MOCCarbon Steel / Stainless Steel / Duplex / Alloys
Ball MOCStainless Steel / Duplex / Alloys
Seat OptionsPTFE / GFT / CFT / TFM / Devlon / PEEK / Metal (CRC / TCC / ST)
Stem MOCSS 304L / SS 316L / SS 304 / SS 316 / F51 / 17-4PH / Inconel 718

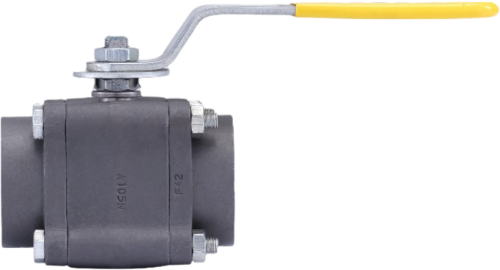

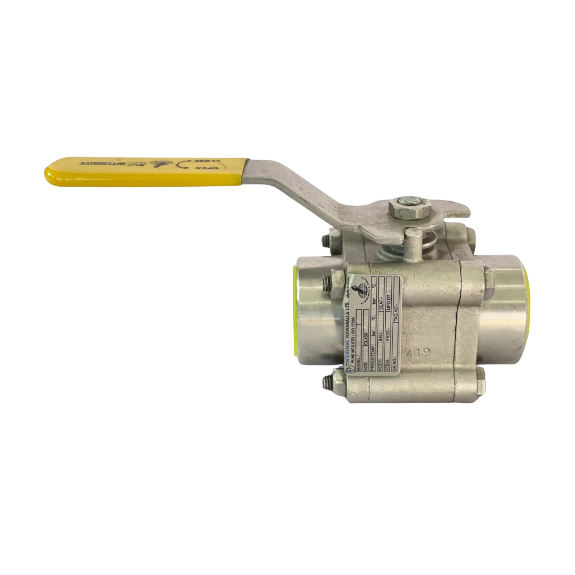

Click to zoom & inspectVariant 3
3 Pcs DesignForge Ball Valves
Specifications
Size Range15 NB to 50 NB
Pressure RatingASME Class #600, #800 & #1500
Design StandardISO 17292, API 608
Testing Std.BS EN ISO 5208 / API 598 / BS EN 12266-1
Face to FaceManufacturing Standard
End ConnectionSocket Weld, Screwed & Butt Weld
Materials
Body MOCCarbon Steel / Stainless Steel
Ball MOCStainless Steel
Seat OptionsPTFE / GFT / CFT / TFM / PEEK
Stem MOCSS 304 / SS 316 / F316L / F304L / 17-4PH

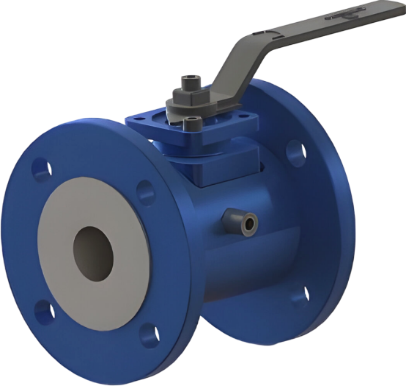

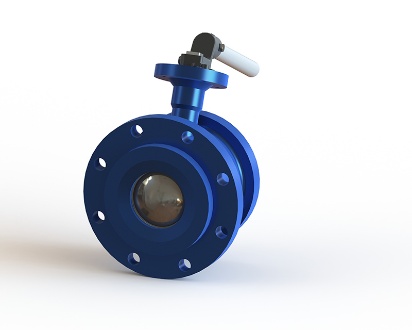

Click to zoom & inspectVariant 4
Jacketed DesignSingle Piece Jacketed Ball Valve
Features
Single PieceCavity FreeFull BoreFire Safe
Specifications
Size Range15 NB to 250 NB
Pressure RatingASME Class #150 / #300
Design Temp.35°C to 280°C (Soft Seated)
Design StandardISO 17292, API 6D
Testing Std.API 6D / BS EN ISO 5208 / API 598 / BS EN 12266-1
Face to FaceASME B16.10
End ConnectionFlanged ASME B16.5
Flow DirectionBi-Directional
Jacket ConnectionFlange / Coupling
OperatorHand Lever / Gear Box / Actuator
Materials
Body MOCCarbon Steel / Stainless Steel
Ball MOCStainless Steel
Seat OptionsGFT / CFT / TFM / PEEK
Stem MOCSS 304 / SS 316 / F316L / F304L / 17-4PH
Jacket MOCCarbon Steel / Stainless Steel

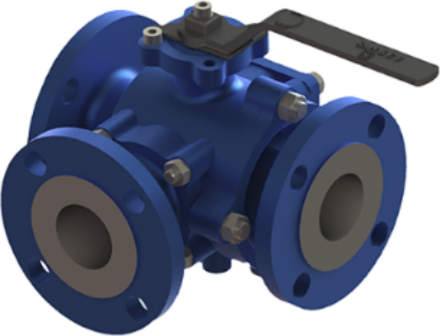

Click to zoom & inspectVariant 5
T & L Port Design3-Way Floating Ball Valve
Specifications
Size Range15 NB to 250 NB
Pressure RatingASME Class #150 / #300
Design Temp.35°C to 280°C (Soft Seated)
Design StandardISO 17292, API 6D
Testing Std.API 6D / BS EN ISO 5208 / API 598 / BS EN 12266-1
Face to FaceASME B16.10
End ConnectionFlanged ASME B16.5
Flow DirectionBi-Directional
Port ConfigurationsT-Port & L-Port Flow Diverting
Jacket ConnectionFlange / Coupling
OperatorHand Lever / Gear Box / Actuator
Materials
Body MOCCarbon Steel / Stainless Steel
Ball MOCStainless Steel
Seat OptionsGFT / CFT / TFM / PEEK
Stem MOCSS 304 / SS 316 / F316L / F304L / 17-4PH

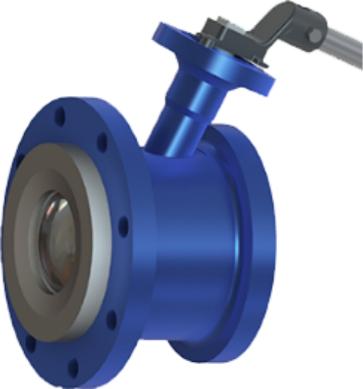

Click to zoom & inspectVariant 6
Tank / Vessel MountingFlush Bottom / Tank Bottom Ball Valve
Features
Cavity FreeFull BoreDirect Mounting to Vessel FlangeAngled Stem DesignDouble SealingOne Piece Body
Specifications
Size Range15 NB to 250 NB
Pressure RatingASME Class #150 / #300 / #600
Design Temp.35°C to 280°C (Soft Seated)
Design StandardISO 17292, API 6D
Testing Std.API 6D / BS EN ISO 5208 / API 598 / BS EN 12266-1
Face to FaceASME B16.10
End ConnectionFlanged ASME B16.5
Flow DirectionUni-Directional
OperatorHand Lever / Gear Box / Actuator
Materials
Body MOCCarbon Steel / Stainless Steel / Alloys
Ball MOCStainless Steel / Alloys
Seat OptionsGFT / CFT / TFM / PEEK
Stem MOCSS 304 / SS 316 / F316L / F304L / 17-4PH
Jacket MOCCarbon Steel / Stainless Steel

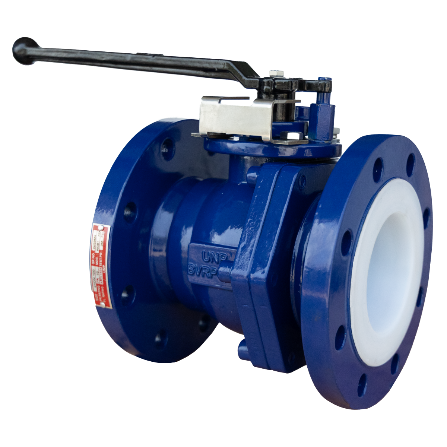

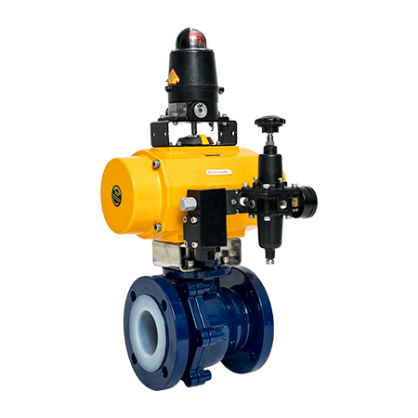

Click to zoom & inspectVariant 7
Corrosion Resistant LinedPFA Lined Ball Valve
Specifications
Size Range15 NB to 250 NB
Pressure RatingASME Class #150
Design Temp.35°C to 200°C
Design StandardBS EN 17292
Testing Std.API 598 / BS EN 12266-1
Face to FaceASME B16.10
End ConnectionFlanged ASME B16.5
Flow DirectionBi-Directional
OperatorHand Lever / Gear Box / Actuator
Materials
Body MOCCarbon Steel / Stainless Steel / Alloys
Ball & Stem MOCStainless Steel / Alloys
Seat OptionsPTFE / TFM
Lining MOCPFA / FEP / PVDF / ETFE / Antistatic PFA
